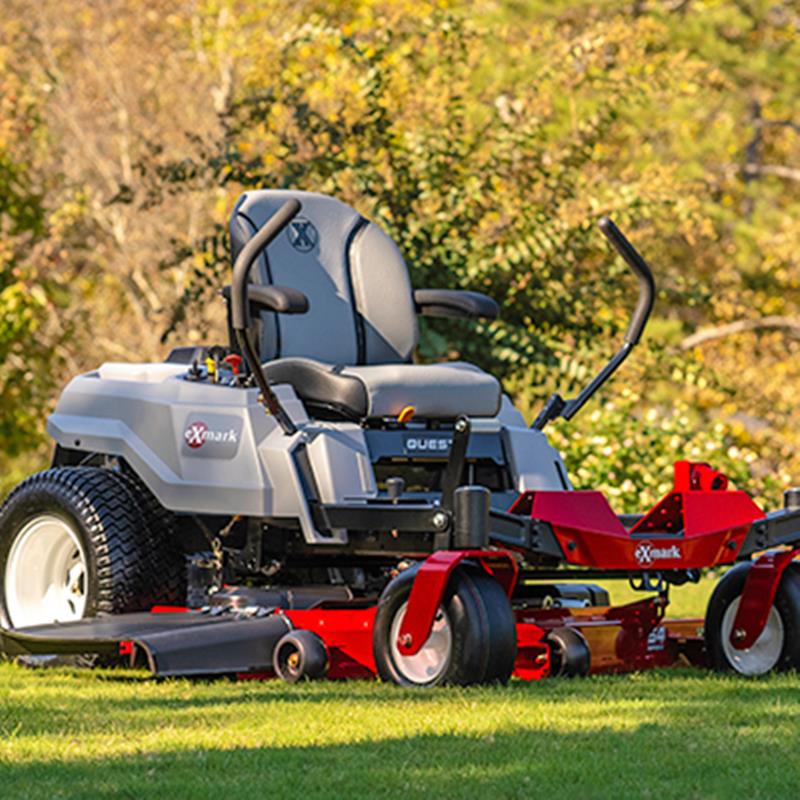

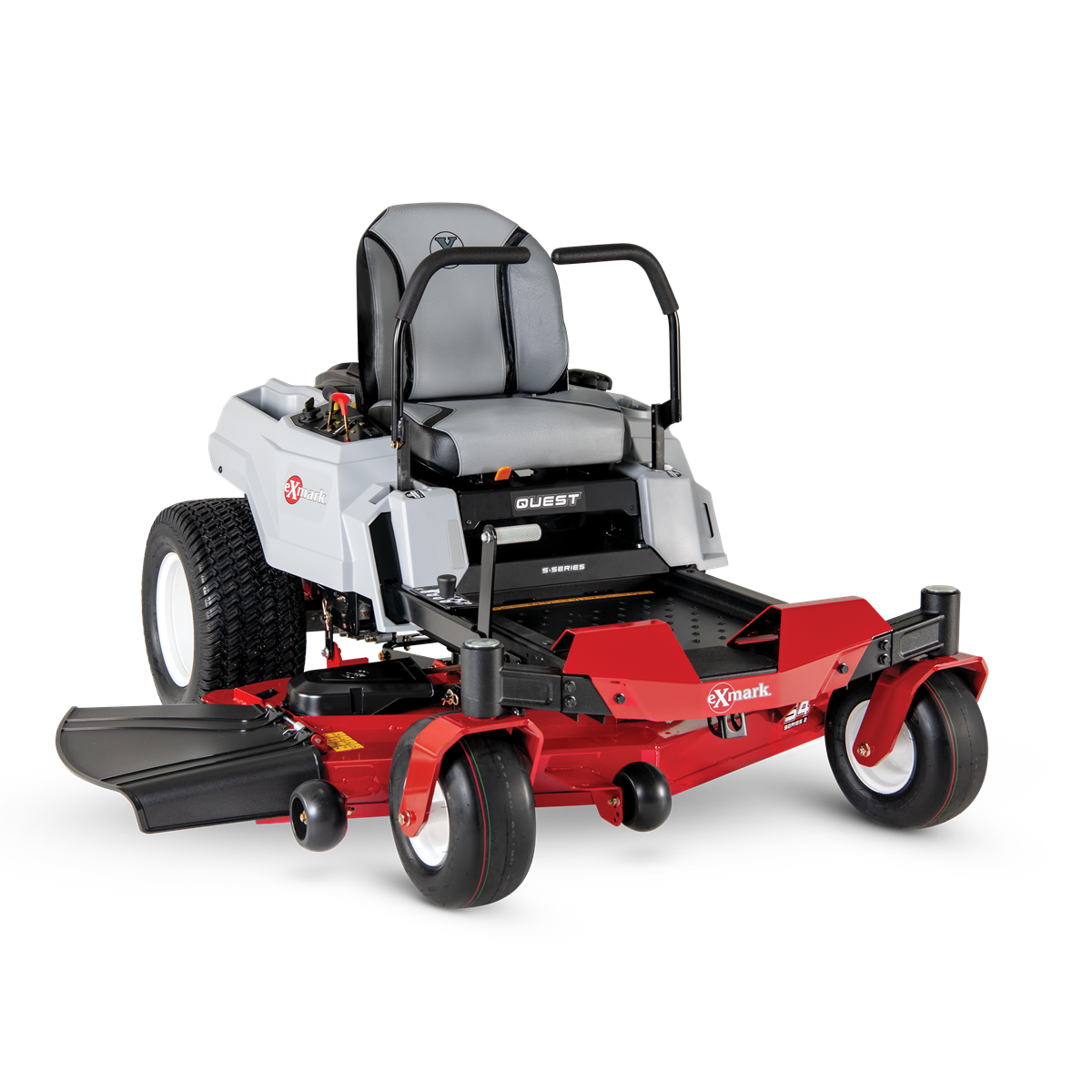

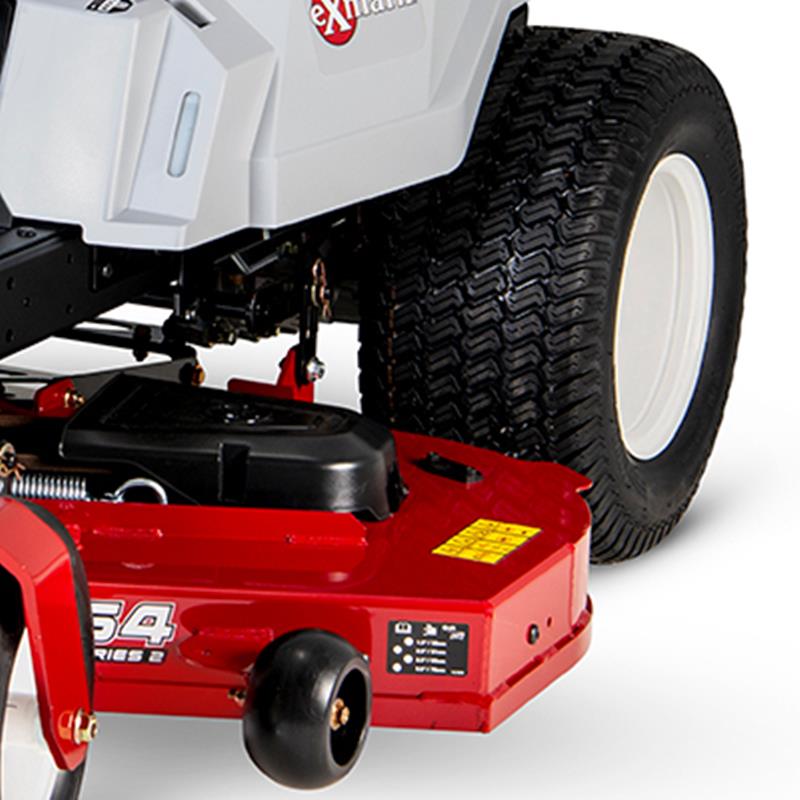

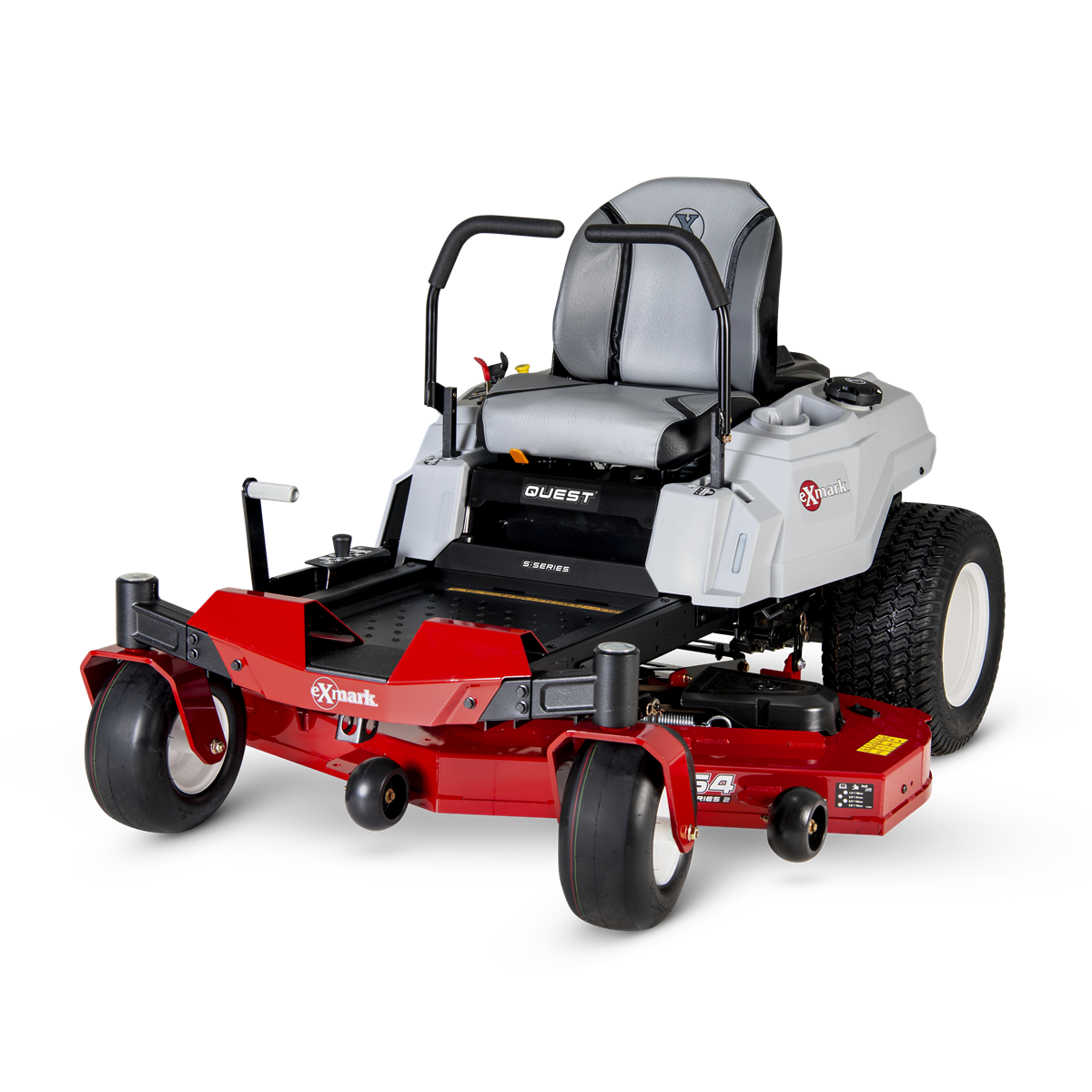

Exmark Quest S-Series with 24 HP* Kohler 7000 Engine and 54″ Series 2 Deck

Contact us for price

Stock status: Call Store for Availability

For homeowners looking to upgrade to Exmark’s best residential zero-turn mower, the Quest S-Series delivers commercial-grade performance at an affordable price. With the ability to clear more than 3 acres of lawn per hour, S-Series residential zero-turn lawn mowers make quick work with forward ground speeds up to 7 mph. Factor in Exmark’s signature zero-turn maneuverability, and the S-Series offers tremendous value with professional mowing results.The S-Series residential lawn mower boasts a massive 54-inch welded steel mower deck and cutting width powered by a Kohler® or Exmark engine, which features a heavy-duty hydro gear system. Every Quest arrives standard with commercial-grade wheels for precise cutting and professional-grade traction to complement the 24 horsepower engine.Check out our Radius and Lazer Z mower lines for larger, more powerful zero-turn riding mowers.(Mower shown with optional 2-Bag Collection System, Weight Kit, Light Kit and Armrests. Accessories sold separately.)

Call Us Now

Specs

UPC

193308215648

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.375" thick caster yoke arms.

Front Caster Tires

13 x 6.5-5 smooth-tread, pneumatic.

Drive Tires

20 x 10.0-10 Turf Tech TL

Parking Brake

Automatic-actuated pawl brake.

Tractor Frame

Unibody, riveted 10-guage steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 17mm (.67") diameter spindle shaft.

Electrical

12 volt battery with 15-amp alternator

Standard Features

Engine hour meter, cup holder and hitch

Seat

Commercial grade, high back contoured foam padded w/o arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position.

Optional Features

seat armrests

Engine Brand

Kohler

Engine Model

KT735

Engine Displacement

735

Engine Series

7000 Series

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–7.0 mph (11.3 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.

Drive

Hydro-Drive

Engine Spec

3089

Engine Speed

3,300 rpm

Air Filter

Standard Engine Manufacturer's air filter

Fuel Capacity

3-gallon (11.0-L), single fuel tank with single fill locations

Drive Description

Two Hydro-Gear ZT-2200 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir

Fuel Type

Gas Carbureted

PTO Engagement

Electromagnetic 105-ft-lb clutch

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock.

ROPS

Optional Rigid ROPS with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Series 2 fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch.

Width / Cutting Deck

54"

Deck Construction

10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper. 4 point suspension.

Cutting Heights

1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from operator's seat.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 18.75" Length

Width

65.2 in. (166.0 cm)

Height

46.6 in. (119.0 cm)

Length

76.0 in. (193.0 cm)

Curb Weight

616
